PGCS ISR-3 OVERVIEW

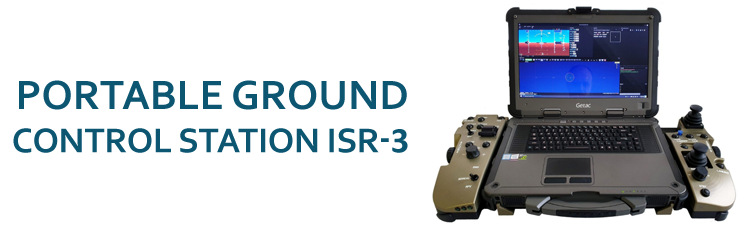

The Portable Ground Control Station 3 (PGCS 3) is based on a console with controls and a docking interface for a military-grade rugged Getac X500 laptop computer. All main UAV and payload controls are collected on the ergonomic control panel. Console joysticks, push-buttons and switches are industrial water-proofed units. Console housing is made of aluminum alloy. The ability to integrate different 15” laptop computer models makes the system even more versatile platform to use.

PGCS ISR-3 can be used as a simulator. A digital modem integrated into the UAVOS system provides UAV control without using an external antenna complex. UAVOS has also developed a switching and power supply board which allows the PGCS ISR-3 to work from various power sources, as well as to charge the docked computer.

PGCS ISR-3 provides:

  • Real-time telemetry information from the UAV/platform

  • Payload control

  • Reception, recording, storage and playback of payload information with real time display

  • Control of flight modes and payload operation

  • Preparation and upload of the mission

  • Real-time platform health monitoring

  • Preflight and post-flight inspection

  • Registering target coordinates

  • Flight mission control

  • Flight mission protocol logging

  • Flight mission simulation

SPECIFICATIONS:

  • Temperature range: -20°C..55°C

  • Dimensions: Length 656 mm, width 332 mm, height 128 mm

  • Battery life of the GCS: Not less than 2.5 hours

  • Weight: Console weight – 3.9kg

  • Getac X500 weight – 5.5kg

  • Control panel:

    • Secure keyboard

    • 11 function buttons, 2 rotary controls, 2 switches

    • Payload joystick

    • UAV joystick

    • Accelerator joystick

    • Battery status indicator

  • Accumulator batteries and chargers:

    • Standard internal Li-Fe rechargeable battery: 10.8V, 8700mAh

    • AC adapter (150W, 100-240VAC, 50 / 60Hz)

  • Processor: Intel® Core™ i7-7820HQ vPro™ Processor 2.9GHz, Max 3.9GHz

  • RAM: 8 Gb DDR4

  • Display: 15.6" TFT LCD FHD (1920 x 1080)

  • Hard Drive: SSD 512GB

  • Wireless network:

    • Intel® Dual Band Wireless-AC 8265, 802.11ac

    • Bluetooth® (v4.2)

  • External connectors:

    • Serial port (9-pin; D-sub) x 2

    • External VGA (15-pin; D-sub) x 1

    • Microphone (Mini-jack) x 1

    • Audio output (Mini-jack) x 1

    • DC in Jack x 1

    • USB 3.0 x 4

    • LAN (RJ45) x 2

    • HDMI x 1

    • Amphenol PT02E-8-4P

    • Amphenol PT02E-10-6P

    • Amphenol PT02E-12-10P
