ISR Loitering drone One (ISR-LD1)

The new ISR-LD1 Loitering Drone has been designed to gather relevant information through Intelligence Surveillance and Reconnaissance missions.

ISR-LD1 OVERVIEW

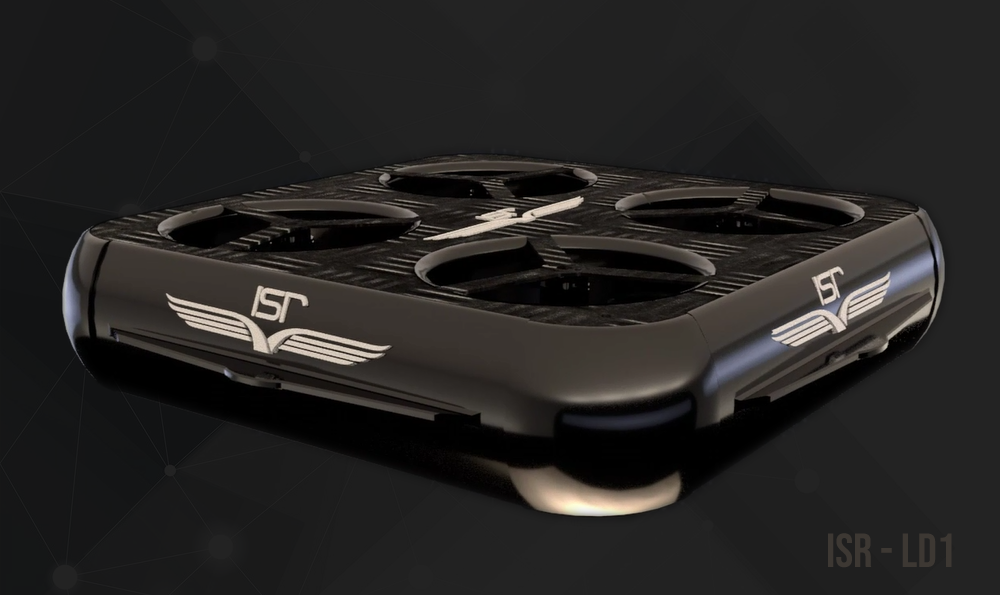

● The new ISR-LD1 has a unique design with a rugged airframe. There is not wasting time in the assembling process because its design allows the drone to be in its flying mode and ready for action at all times.

● The new ISR-LD1 has been manufactured with high-end components. It has included all the security features to make its use safe: an encrypted control system, a mini-Lidar for avoidance and an optical longwave IR camera.

● The new ISR-LD1 has a flight time expected up to 15 minutes fully loaded or up to 30 minutes for extended ISR missions. Take-off and landing is fully automatic

APPLICATIONS AND USES

● Video surveillance and monitoring

● Immediate air support for intelligence gathering.

● Video streaming in real time

● Accurate location coordinates

● Reconnaissance missions

● Strategic payload dropping

● Small cargo delivery

ISR-LD1 FEATURES

● Small and compact size 238x238x50mm.

● Easy to transport and storage.

● Quick autonomous or manual deployment.

● 1 Kg Payload Capacity.

● 2 kg MTOW.

● 10 Km Control Range.

● 5000 M maximum Take-off Altitude.

● 15 Minutes estimated flight time with full payload.

● 30 Minutes estimated flight time with back up batteries.

● 10 m/s Max Horizontal Speed.

● 5 m/s Max Vertical Speed.

● 0° to 45° C Operating Temperature Range.
