ISR Interception Capture System

ISR ICS OVERVIEW

The ISR Interception Capture System (ICS) throws a trap on a collision course, exposing an object to an insurmountable obstacle. This technology allows not to get oneself into the engagement range during maneuvering, and gives enough time to choose a safe place for the fall of an immobilized object.

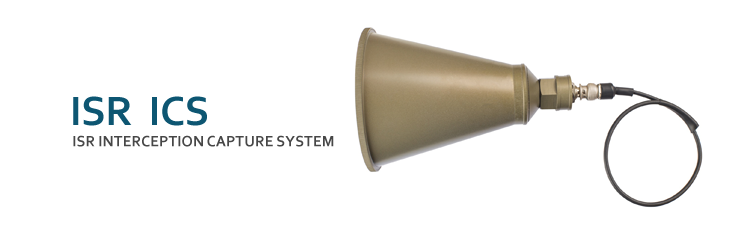

The ISR Interception Capture System (ICS) is made in a form of a metal conical tube in which the UHMW PE net is hidden. A pyro cartridge which is located at the end of the tube fires a "web". The system is to be installed on the UAV in a backward direction. The drone interceptor has to be 49-66 feet (15-20 meters) ahead of the target and 15 meters above it, and then make a shot.

FEATURES

  • Weight: Up to 2.9 lb (1.3 kg)

  • Dimensions (diameter, length): 4.84x6.73 in (123x171 mm)

  • Net size: 13.1 ft (4x4 m)

  • Mesh size: 0.98 ft (0.3x0.3 m)

  • Net firing distance: Up to 49.2 ft (15 m)
