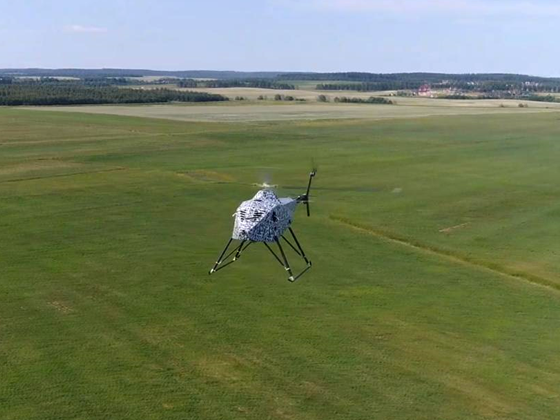

UNMANNED HELICOPTER ISR 350-5
“AN EXAMPLE OF SIMPLICITY AND TECHNOLOGY THAT AMAZES”
ISR 350-5 OVERVIEW
The VTOL ISR350-5 © Long Rage Unmanned Helicopter has a unique design, introduces improvements to all its systems, from the mechanics to the on-board electronics and the available payloads.
The ISR-350-5 is a light, single-engine, gasoline-powered helicopter. With a fuel consumption of 2 litres per hour, is expected to stay airborne for up to 6 hours.
The payload of up to 5 kg is intended for survey, surveillance instruments and radar.
The ISR350-5 is offering a solution with this new medium-sized unmanned helicopter tailored specifically to the requirements of the commercial, civil and military operations.
The electronics are IP67 rated, allowing the helicopter to operate in harsh environment including a tropical climate.
ISR 350-5 STANDARD CONFIGURATION
Integrated Autopilot (AP), fully redundant.
Transponder/ADS-B/Ground Proximity Warning (GPWS).
Gimbal mounted Electro Optical (EO) and Infrared Sensor (IR) with optional Laser Range Finder.
SATCOM data and telemetry link (BLOS missions).
Integrated pilot and operator, portable Ground Control Station (GCS) incl. software.
Synthetic Aperture Radar (SAR).
ISR 350-5 FEATURES
Temperature range: From -35°C to +50°C
Level Surface base for take off & landing area: 15m x 15m
Takeoff and landing: Fully automatic
Control modes: Fully automatic / Semi-automatic/ Emergency
Emergency landing: Parachute and/or autorotation
Cruising speed: 60km/h
Maximum speed: 120km/h
Length: 3285 mm
Main rotor diameter: 2600 mm
Height: 851 mm
Wheelbase : 875 mm
Engine type : 4-stroke engine
Fuel feed: Injection System
Power: 7 kw
Engine start: Onboard starter
Max. payload: 5kg
MTOW: 42kg
Empty weight: 27 kg
Fuel tank: 10 lt
Max. wind speed while taking off or landing: 14 m/s (27kts)
Operational range: 350km
Practical ceiling: 2500m
Endurance (max with 4kg payload) : 5h
TBI (inspections, maintenance): 260h /400h
Altimeter: Laser
Parachute: Balistic
Onboard power supply: 12 V
