Camera ISR3

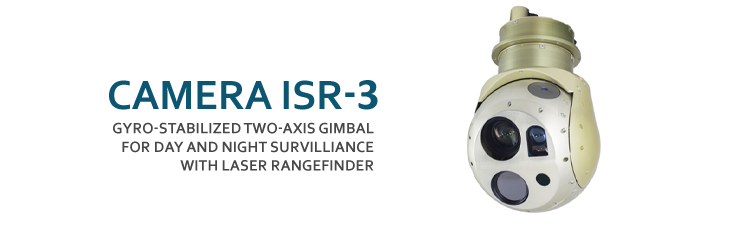

CAMERA ISR - 3 OVERVIEW

Gyro-stabilized two-axis gimbal with integrated 30x Optical Zoom Full HD (1080/ 60p) Block Camera, Thermal LWIR 1024x768 cameras, Laser rangefinder 2500 m and GPU (Graphics Processing Unit). The optoelectronic onboard unit is designed to perform complex missions and is ideally suited for a wide range of applications, including prospecting, surveillance, and mapping.


FEATURES

  • Weight: 3.5 kg

  • Housing: aluminum

  • IP-65

  • Drying cartridge

  • Direct drive

  • Absolute encoder

  • Two-axis rotation: 360°+

  • Fully integrated video auto-tracker

  • Integrated CPU

  • Operational temperature range: -40 … +50°С

  • Supply voltage: 12-27V

  • Max. power consumption: 60W

  • Removable flash card up to 128 GB

  • Max. external dimensions (length, diameter): 323x200mm

  • Anti vibration frame

DAY CAMERA PARAMETERS

  • Video camera: SONY

  • Video output: FHD H.264 Ethernet

  • Max field of view: 50º

  • Resolution: 1920x1080

  • Heated protective glass: Optional

  • Optical zoom: 30

  • Effective elements: 2.38 Mg Pix

  • Focus: auto / manual

  • Lens: F 4.3 mm 129 mm

  • Altitude range, m: 0 … +8000

SENSORS

  • IR camera parameters

  • Thermal Imager: LWIR detector

  • Video output: H.264 Ethernet

  • Lens: 50 mm f/1.4

  • Wavelength band: 8-14 µm

  • Matrix resolution: 1024x76

OPTIONAL

  • Laser rangefinder parameters

  • Total measurement range: 50-2500 m

  • Measurement accuracy: ≤ 0.5 m

  • Measurement frequency: 1 ... 10 Hz

  • Resolution: 0.1 m

  • Transmitter: Diode laser

  • Laser classification: Laser Class 1
